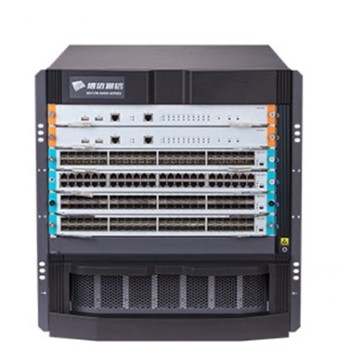

SWITCH BDCOM S9506

SWITCH BDCOM S9506

Giá: Liên hệ

  • Mã sản phẩm:S9506
  • Xuất xứ:Trung Quốc
  • Bảo hành:24 tháng
  • Tình trạng:Hàng sẵn kho
Khung thiết bị của S9506:
- Bao gồm 2 khay quạt,
- 7 khe cắm nguồn,
- 2 khe cắm card điều khiển,
- 4 khe cắm card chuyển mạch,
- 4 khe cắm line card

Các sản phẩm truyền thông mạng BDCOM đã trở thành công cụ không thể thiếu trên tất cả các giai đoạn, từ tiểu học đến đại học.

Bằng cách cung cấp các giải pháp đáng tin cậy, có thể mở rộng và sáng tạo, BDCOM đã đóng một vai trò quan trọng trong việc hiện đại hóa hệ thống giáo dục và trao quyền cho các nhà giáo dục để tạo ra trải nghiệm học tập biến đổi.

Cam kết của BDCOM về sự xuất sắc và đổi mới liên tục trong các sản phẩm truyền thông mạng đã tạo ra tác động đáng kể và tích cực đến ngành giáo dục ở nhiều quốc gia khác nhau, làm phong phú thêm cuộc sống của vô số sinh viên và nhà giáo dục, đồng thời thúc đẩy một thế hệ tương lai của các cá nhân tri thức.

Huviron tự hào là nhà nhập khẩu và phân phối thiết bị mạng BDCOM tại Việt Nam.

Mọi thông tin chi tiết về sản phẩm, cách thức đặt hàng hoặc báo giá về cá sản phẩm thiết bị mạng, Wifi, Gateway, xin vui lòng liên hệ trực tiếp với Huviron Việt Nam để được tư vấn và hỗ trợ một cách nhanh chóng và tiện lợi nhất!

TRỤ SỞ CHÍNH

Tòa nhà Phúc Bình, Lô A44, Khu 3ha, Đường Đức Diễn, Phường Phúc Diễn, Quận Bắc Từ Liêm, Thành phố Hà Nội

Điện thoại: 0243 748 0932

CHI NHÁNH ĐÀ NẴNG

Số 436/1 Nguyễn Tri Phương, Phường Hòa Thuận Tây, Quận Hải Châu, Thành phố Đà Nẵng

Điện thoại: 0865044266

CHI NHÁNH HỒ CHÍ MINH

52/5A Cù Lao, Phường 2, Quận Phú Nhuận, TP HCM

Điện thoại: 02862 578 223

TRUNG TÂM BẢO HÀNH SỬA CHỮA

Tòa nhà Phúc Bình, Lô A44, Khu 3ha, Đường Đức Diễn, Phường Phúc Diễn, Quận Bắc Từ Liêm, Thành phố Hà Nội

Điện thoại: 0243 795 5835





Khung thiết bị của S9506:
- Bao gồm 2 khay quạt,
- 7 khe cắm nguồn,
- 2 khe cắm card điều khiển,
- 4 khe cắm card chuyển mạch,
- 4 khe cắm line card
projectS9506
Exchange capacity20.74Tbps/128

Tbps

Packet forwarding rate5040Mpps/36000 Mpps
Total number of slots10
Number of main control board slots2
Number of Slots of Switching Network Board4
Number of business board slots4
Data center characteristicsSupport BVSS virtualization technology

Support TRILL/SPB large two-layer technology

Support FCoE technology

Support SDN

MAC exchange functionSupport static configuration and dynamic learning of MAC address

Support view and clear MAC address

Configurable MAC address aging time

Support MAC address learning limit

Support MAC address filtering function

Support black hole MAC entries

Support IEEE 802.1AE MacSec security control

VLANSupport 4K VLAN table entries

Support GVRP

Support 1:1 and N:1 VLAN Mapping

Support basic QinQ and flexible QinQ functions

Support Private VLAN

STPSupport 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

Support BPDU protection, root protection, loop protection

MulticastSupport IGMP v1/v2/v3

Support IGMP Snooping

Support IGMP Fast Leave

Support multicast group policy and limit on the number of multicast groups

Supports cross-VLAN replication of multicast traffic

Support PIM-SM, PIM-DM

IPv4Support static routing, RIP v1/v2, OSPF, BGP

Support policy routing

Support equal cost routing to achieve load balancing

Graceful Restart supporting OSPF and BGP

Support BFD for OSPF, BGP

IPv6Support ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

Support IPv6 neighbor discovery

Support Path MTU discovery

Support MLD, MLD Snooping

Support IPv6 static routing, RIPng, OSPFv3, BGP4+

Support manual tunnel, ISATAP tunnel, 6to4 tunnel

MPLS VPNSupport LDP protocol

Support MCE

P/PE function requirements to support MPLS VPN

Support MPLS TE

Support MPLS OAM

QoSSupport traffic classification based on each field of the L2/L3/L4 protocol header

Support CAR flow limit

Support 802.1P/DSCP priority re-marking

Support queue scheduling methods such as SP, WRR, SP+WRR, etc.

Support congestion avoidance mechanisms such as Tail-Drop and WRED

Support traffic monitoring and traffic shaping

Supports Ingress and Egress ACLs, supports matching L2, L3, L4 and IP quintuples for copying, forwarding, and discarding

Support Hash homology and homology load balancing to ensure the session integrity of traffic output

Safety featuresSupport L2/L3/L4 based ACL flow identification and filtering security mechanism

Support anti-DDoS attack, TCP SYN Flood attack, UDP Flood attack, etc.

Supports suppression of multicast, broadcast, and unknown unicast messages

Support port isolation

Support port security, IP+MAC+port binding

Support DHCP Snooping, DHCP Option 82

Support IEEE 802.1x authentication

Support Radius, BDTacacs+ certification

Support uRPF

Support command line hierarchical protection

reliabilitySupport dual main control redundancy

Support multiple power backup

Support main control, hot swap of business cards and automatic business recovery

Support static/LACP mode link aggregation, support link aggregation across business cards

Support ring network protection such as EAPS

Support VRRP

Support Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731

Support GR for OSPF, BGP

Support BFD for OSPF, BGP

Support ISSU business uninterrupted system upgrade

Management and maintenanceSupport Console, Telnet, SSH

Support SNMP v1/v2/v3

Support file upload and download management in TFTP mode

Support RMON

Support sFLOW, Netflow traffic statistics analysis

Value-added servicesSupport POE function
green technologySupport IEEE 802.3az Green Energy Efficient Ethernet
Environmental requirementsWorking temperature/humidity: 0℃-40℃, 10%-90% non-condensing

Storage temperature/humidity: -20℃-70℃; 5%-95% non-condensing

power supplyAC: 100V-240V, 50Hz±10%

DC: -48V

Chassis size mm (width × depth × height)482×564×486

11U
