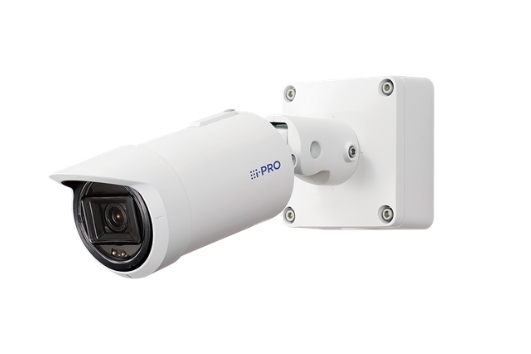

Camera I-PRO WV-S1536LNA

Image Sensor

Approx. 1/2.8 type CMOS image sensor

Scanning Area

5.57 mm (H) × 3.13 mm (V), {7/32 inches (H) × 1/8 inches (V)}

Minimum Illumination

“Color :
0.007 lx (30IRE, F1.3, 1/30s, AGC:11)*
0.009 lx (50IRE, F1.3, 1/30s, AGC:11)
0.0006 lx (50IRE, F1.3, 16/30s, AGC:11)*

BW :
0 lx (50IRE, F1.3, 1/30s, AGC:11, IR LED: On)
0.005 lx (50IRE, F1.3, 1/30s, AGC:11)
0.0004 lx (50IRE, F1.3, 16/30s, AGC:11)*
*Converted value

White Balance

ATW1/ ATW2/ AWC

Shutter Speed

[60 fps Mode] 1/60 Fix to 1/10000 Fix,
[30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix
[50 fps Mode] 1/50 Fix to 1/10000 Fix,
[25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix

Maximum Shutter

[60 fps mode] Max. 1/4000 s to Max. 16/30 s
[50 fps mode] Max. 1/4000 s to Max. 16/25 s
[30 fps mode] Max. 1/4000 s to Max. 16/30 s
[25 fps mode] Max. 1/4000 s to Max. 16/25 s
[15 fps mode] Max. 1/4000 s to Max. 16/30 s
[12.5 fps mode] Max. 1/4000 s to Max. 16/25 s

Intelligent Auto

On / Off

Super Dynamic

On / Off, The level can be set in the range of 0 to 31.

Dynamic Range

Max.144 dB (Super Dynamic : On, Level 31)

Adaptive Black Stretch

The level can be set in the range of 0 to 255.

Back Light Compensation/High Light Compensation

BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)

Fog Compensation

On / Off (only when Intelligent auto / auto contrast adjust : Off)

Maximum Gain

The level can be set in the range of 0 to 11.

Color/BW (ICR)

Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

IR LED Light

High / Middle / Low / Off,
Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) , 50 m {Approx. 164 ft} (50IRE)

Digital Noise Reduction

The level can be set in the range of 0 to 255.

Video Motion Detection (VMD)

On / Off, 4 areas available

Scene Change Detection (SCD)

On / Off, 1 areas available

Audio Detection

On / Off

AI Sound Classification

Gunshot, Yell, Vehicle horn, Glass break

AI Analytics

AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection,
AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection
