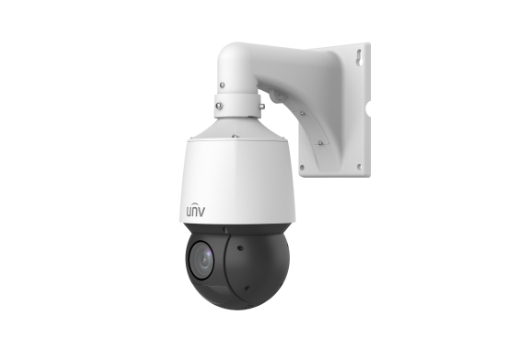

| Camera |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens |
| Focal Length | 5 to 80 mm |
| Optical Zoom | 16X |
| Iris | F1.7 to F2.8 |
| Field of View (H) | 51.70° to 4.89° |
| Field of View (V) | 30.49° to 2.75° |
| Field of View (D) | 63.59° to 5.77° |
| DORI |
| DORI Distance (Lens) | 5 to 80 mm |
| DORI Distance (Detect) | 77.6 m to 1241.4 m (254.5 ft. to 4072.8 ft) |
| DORI Distance (Observe) | 31.0 m to 496.6 m (101.8 ft. to 1629.1 ft) |
| DORI Distance (Recognize) | 15.5 m to 248.3 m (50.9 ft. to 814.6 ft) |
| DORI Distance (Identify) | 7.8 m to 124.1 m (25.5 ft. to 407.3 ft) |
| Video |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps
Sub Stream: 720P (1280 × 720), max. 30 fps
Third Stream: D1 (720 × 576), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Intelligent |
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | N/A |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Exception Detection | Object removed, Object Left Behind |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | Support |
| Events |
| Basic Detection | Motion detection, Tampering alarm, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Illuminator |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 100 m (328.1 ft) |
| Network |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| PTZ |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | N/A |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | 0.1°/s to 80°/s |
| Pan Speed | -15° to 90° (auto reverse) |
| Tilt Speed | 0.1°/s to 80°/s |
| Interface |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | DC 12 V (±25%,3 A), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 20 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø162 mm × 293 mm (Ø6.4" × 11.5") (Ø × H) |
| Weight | 1.79 kg (3.95 lb) |
| Working Environment | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Heater | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable |
| P/N | Support |
