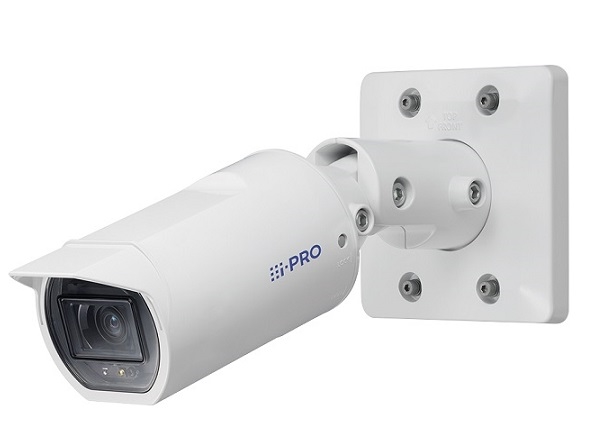

| COMPONENT | SPECIFICATION |
| Image Sensor | Approx. 1/2.7 type CMOS image sensor |
| Minimum Illumination | Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11)
BW : 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit)
Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ATW2/AWC |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s |
| AI Intelligent Auto | On / Off |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.102 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | — |
| Back Light Compensation/High Light Compensation | BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off) |
| Fog Compensation | On / Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off) |
| Maximum Gain | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off
Maximum irradiation distance: 20 m {Approx. 65 ft} |
| Digital Noise Reduction (DNR) | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection | On / Off, 1 area available |
| Privacy Zone | On / Off, Up to 8 zones available |
| Image Rotation | 0 ° (Off) / 90 ° / 180 ° (Upside-down) / 270 ° |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Focal length | 2.9 mm – 7.3 mm {1/8inches-9/32inches} |
| Optical zoom | 2.5x (Motorized zoom/ Motorized focus) |
| Extra optical zoom | 2.5x – 3.3x (when resolution is 1920×1080) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE) |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Adjusting Angle |
| Ceiling mounting | Horizontal: ±180 ° (Adjust by horizontal (PAN) angle)
Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Wall mounting | Horizontal: ±100 ° (Adjust by vertical (TILT) angle)*
Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
| Browser GUI |
| Camera Control | Brightness |
| GUI /Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese |
| Network |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] *[4:3 mode] is not supported.
2560×1440, 1920×1080, 640×360, 320×180 |
| H.265 | Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort
Transmission Type: Unicast / Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
AUTO VIQS: On/ Off |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 recording:
Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
Compatible microSDXC/ microSDHC Memory Card:
Panasonic 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| Alarm |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| General |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device:
DC48 V 150 mA, Approx. 7.2 W (Class 0 device) |
| Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F)
{Power On range: -20 °C to +50 °C (-4°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | 112.5 mm (W) x 112.5 mm (H) x 262 mm (D)
{4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)} |
| Mass (approx.) | 800 g {1.77 lbs.} |
| Finish | Main body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Front cover: Polycarbonate resin, Clear |
