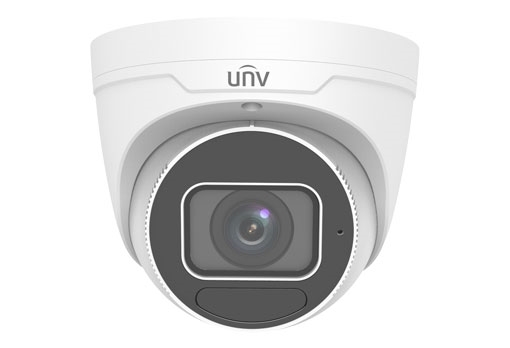

| Camera | IPC3632SA-ADZK |
| Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.7 ~ 13.5mm, AFautomaticfocusingandmotorizedzoomlens |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 40.5 | 16.2 | 8.1 | 4.1 |
| 13.5 | 202.5 | 81 | 40.5 | 20.3 |
| Angle of View (H) | 114° ~ 31.8° |
| Angle of View (O) | 58.9° ~ 17.6° |
| Adjustment angle | 148.2° ~ 37.5° |
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour:0.001Lux (F1.35, AGC ON)
0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to40m (131ft) IR range |
| wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video |
| Video Compression | Ultra 265 ,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: D1 (720*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Audio |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation
EZView
EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Audio I/O | Audio cable |
| Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certifications |
| Certifications | CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 7.8W |
| Dimensions (Ø x H) | Φ129.1 x 111.2mm (Ø5.1” x 4.4”) |
| Net Weight | 0.70kg (1.54lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 6KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
| | | | | | | |
